DPA 4060 CORE Stereo Microphone Kit
The DPA 4060 CORE Stereo Microphone Kit is a cost-effective and flexible stereo recording solution aimed at project studios and for discreet mic setup on stage. It contains a complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB.
4060 CORE Omnidirectional Microphone, Normal SPL
The DPA CORE 4060 Omni microphone is small in size, but mighty in flexibility. The 4060's miniature size enables an exceptionally accurate omnidirectional pattern. You therefore, do not need to aim it directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise, as well as pop and wind noise. This microphone handles sound pressure levels of up to 134dB before clipping occurs.
Diversity in Applications
The DPA 4060 microphone allows for a diverse range of applications. Originally designed for use with wireless systems in theatres, it is also now one of the most loved microphones for film and television applications. Ideal for capturing speech in all of its nuances, it is also suitable for close-miking a wide range of instruments. For applications where the sound source is more remote or dampened and you need to have a good balance of signal to noise ratio, the 4060 is the perfect solution.

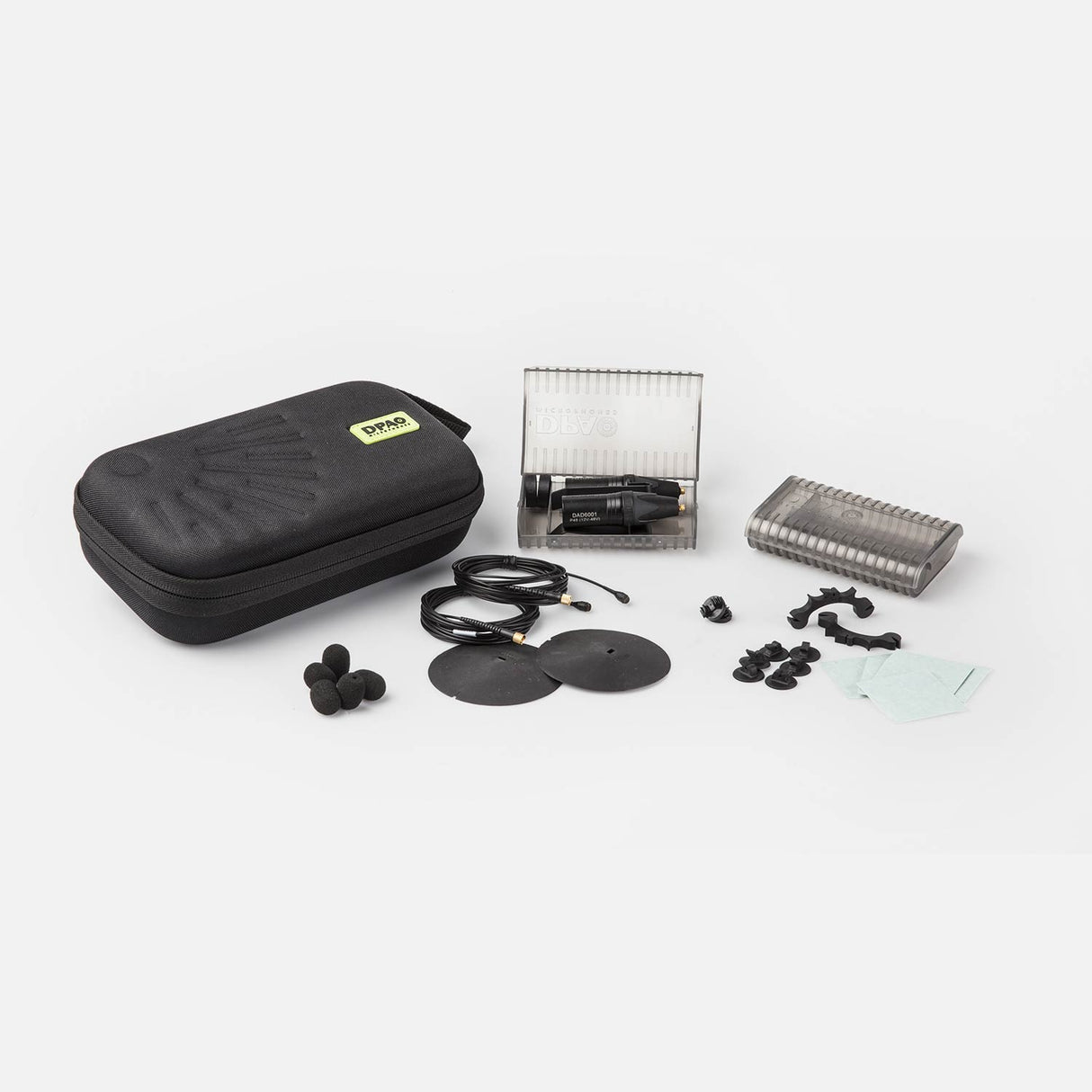

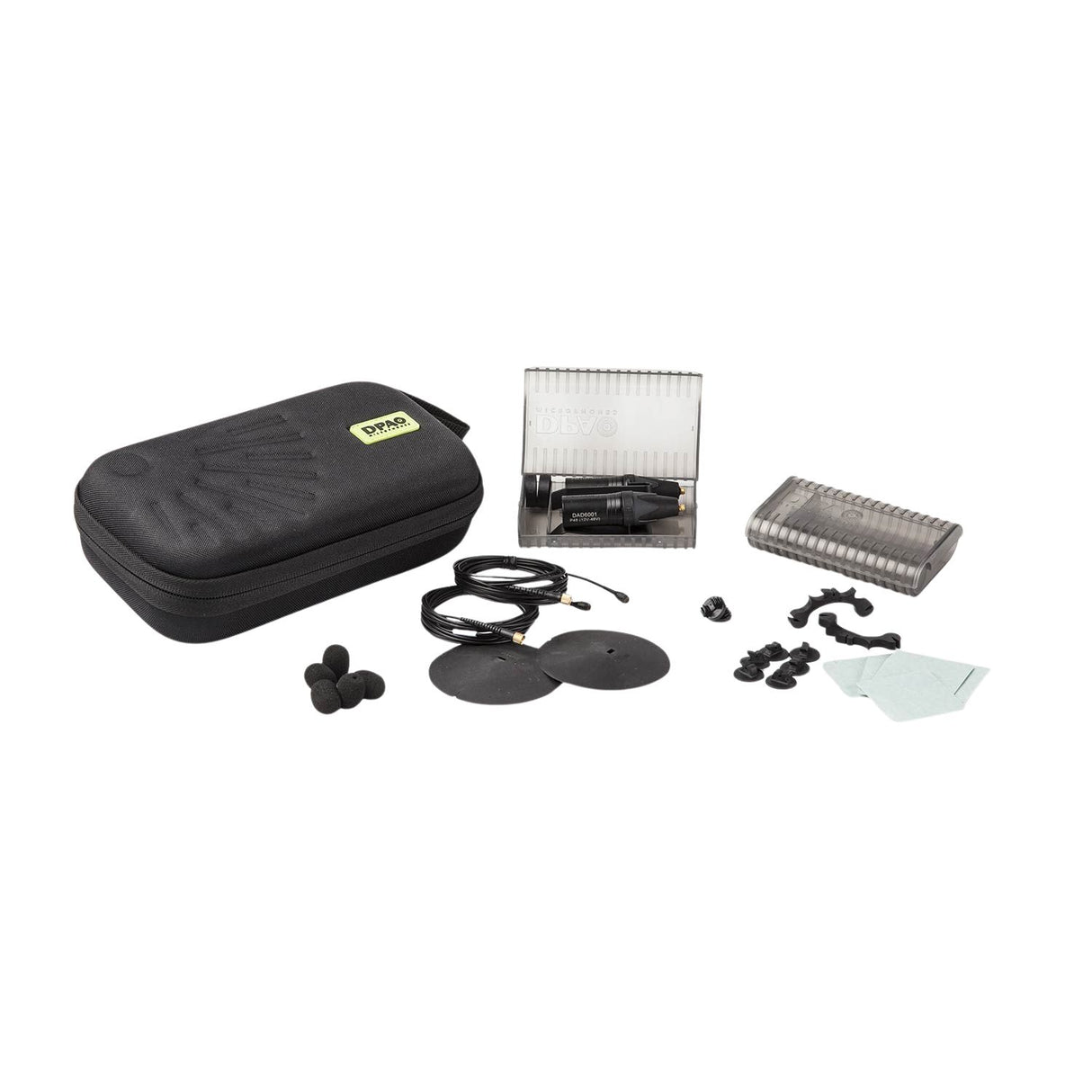

What's in the Box?
- 4060 x2
- Adapter for XLR x2
- Boundary Layer Mount x2
- Surface Mount x2
- Magnet Mount x2
- Soft-Boost Grid x2
- Foam Windscreen x5
- Holder for Strings x2
Specifications
| Specification | Details |
|---|---|
| Directional pattern | Omnidirectional |
| Principle of operation | Pressure |
| Cartridge type | Pre-polarised condenser |
| Frequency response | 20 Hz – 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8–20 kHzHigh boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 0.5% | 125 dB SPL RMS, 128 dB SPL peak |
| Distortion, THD < 1% | 126 dB SPL RMS, 129 dB SPL peak |
| Dynamic range | Typ. 106 dB |
| Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | 30–40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems: Min. 5–10 V through DPA adapterWith DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone); 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Weight | 7.5 g (0.26 oz) incl. cable and MicroDot connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive-going voltage on MicroDot pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
