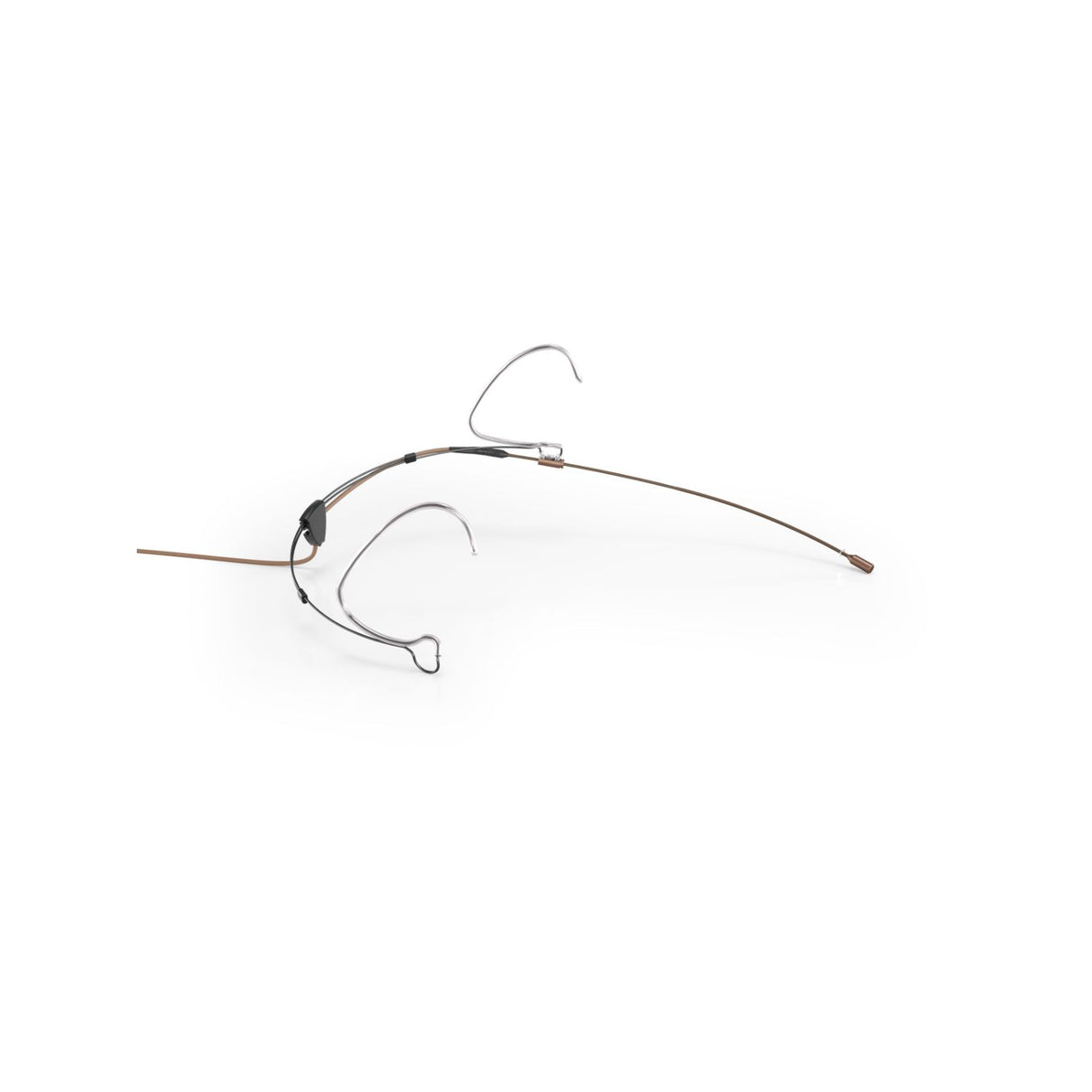

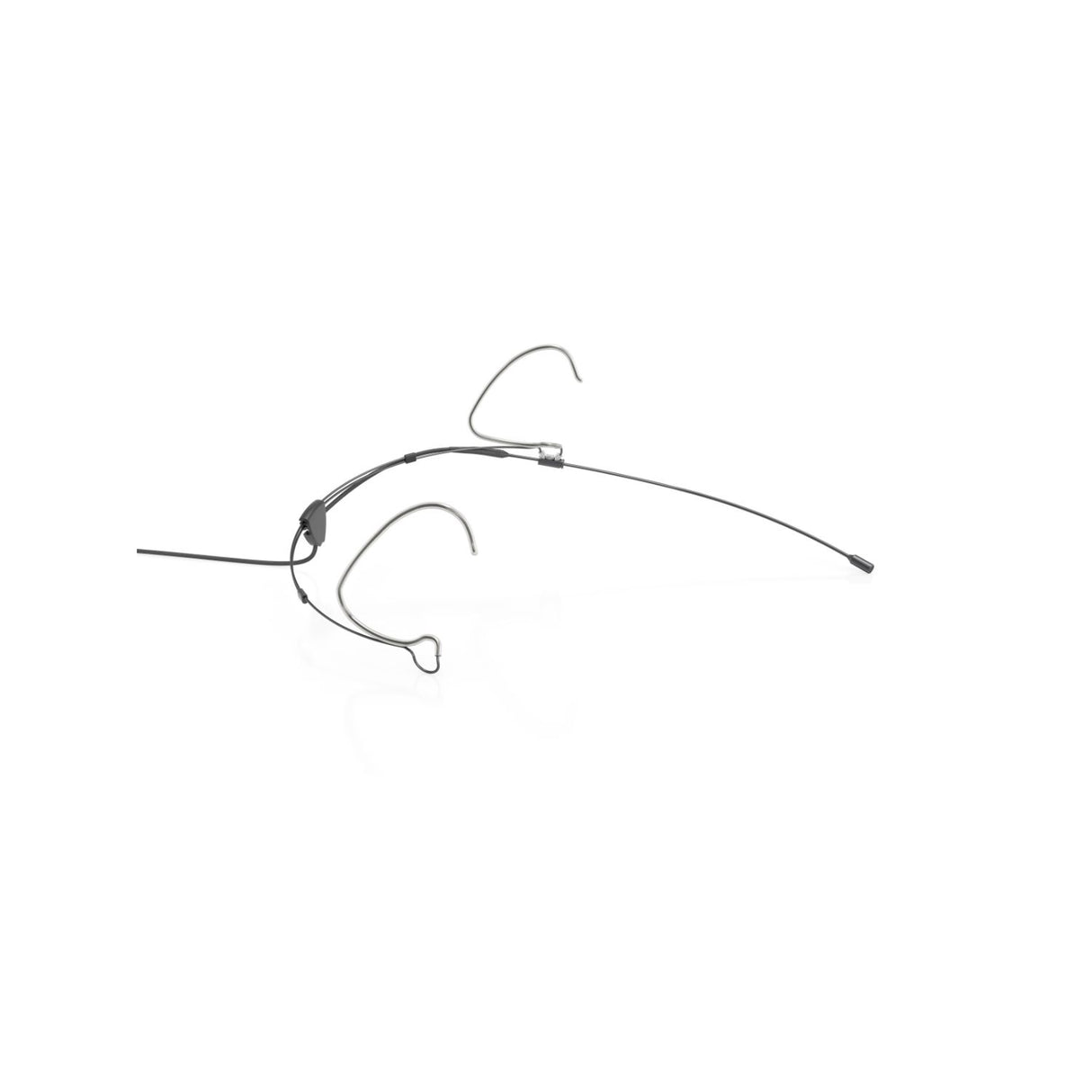

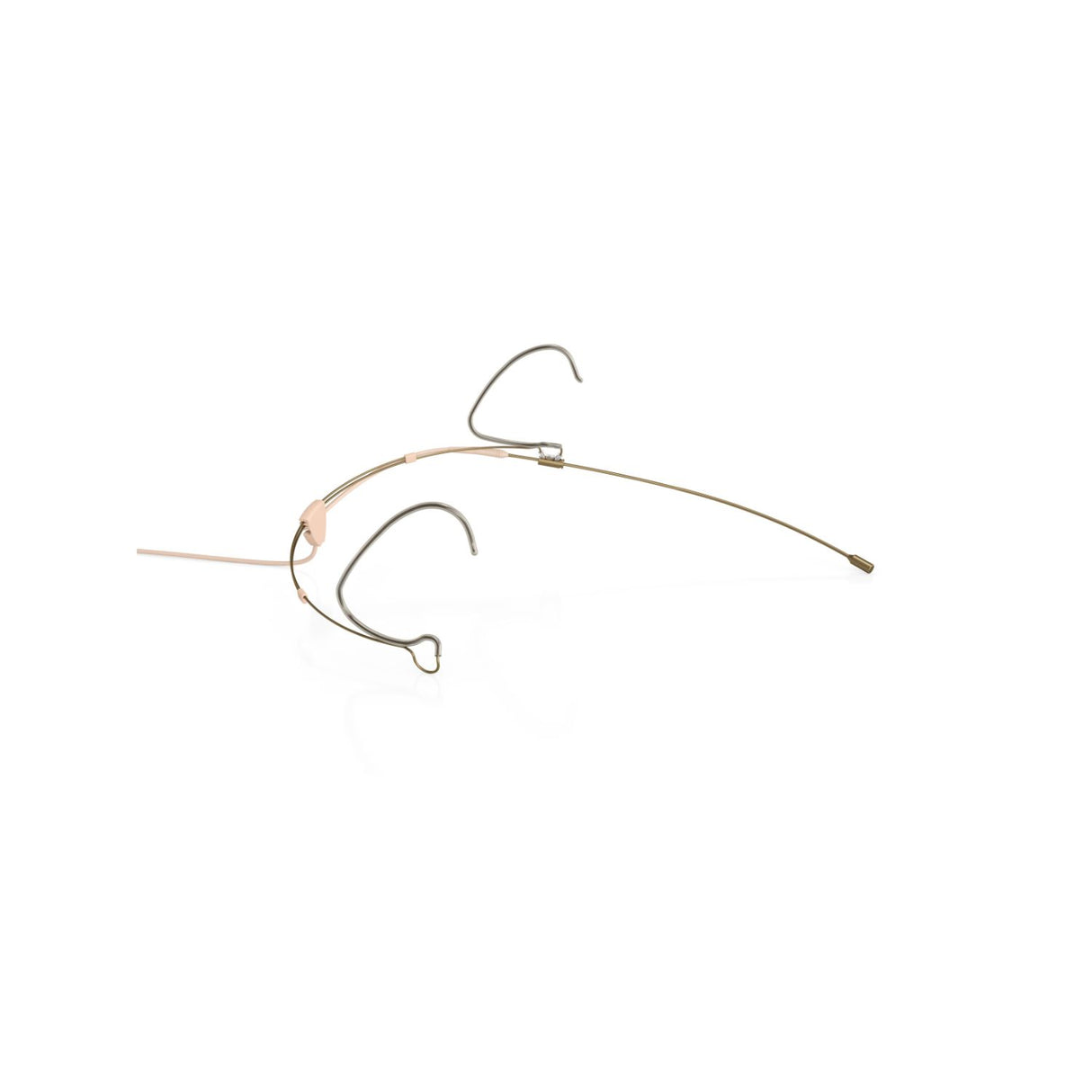

DPA 6066 CORE Omni Headset Subminiature Mic

DPA 6066 CORE Omni Headset Subminiature Mic

The capsule of the 6066 CORE Omni Headset Subminiature Mic is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Beyond this minimised size and maximised sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer’s back, where it can’t be seen.

Between the sound quality and the comfort, once you try it, you'll never want to wear another headset mic solution.

Technically advanced mechanical construction

The new one-size-fits-all Headset is the most advanced construction on the market. It ensures comfort, even during long-term wear, but does so without sacrificing security. Its form grips gently and snuggly around the head and is easily adjustable. The spring mechanisms that grip around the ears are gentle, yet firm enough for you to feel secure during your performance. The Headset can also be customised on site to suit individual performers for perfect fit.

One-size fits all, adjustable frame

The headset frame is made of stainless steel and treated with a Physical Vapor Deposition (PVD) coating that makes it extremely durable. It is able to tolerate high temperatures and is resilient against impact and abrasion. The frame is one-size fits all with a simple adjustment mechanism for quick and easy resizing. Anatomically correct, it fits snuggly and comfortably around the head thanks to its unique shape. The entire mic has a pleasant matte look due to the coating, making the entire headset look small and less obtrusive than other headset solutions. Furthermore, it adds nothing to the size of the microphone, as the PVD is extremely durable but at the same time extremely thin.

2-way adjustable boom

The boom is 130 mm long but can easily be adjusted so that it sits perfectly at the corner of the performer's smile (the optimal placement of a headworn mic). Not only can the boom be extended / shortened, it can be pivoted up and down at a fixed point below the ear (no more bending the boom). An anti-rotating mechanism designed into the boom shape, prevents it from rotating. A sliding lock system ensures that the boom is locked into the desired position. The entire boom can be detached at a point below the ear and moved from the right to left side of the frame.

DPA have also added a service connector at the end of the boom pole so that the boom and cable can be replaced independently if needed. The service connector is well-protected by a plastic cover that slides over the gold-plated connectors.

PVD-treated mic

The entire mic is made of stainless steel and is PVD coated, as is the grid that covers the capsule element. This has allowed DPA to significantly reduce the size of the mic as well as increase its durability. DPA have also added a click function – both tactile and audible – to the mic grid, so you are sure that the grid has been secured properly to the mic housing.

In addition, if you look closely, you might notice that when looking at the microphone housing head on, it resembles the well-known DPA logo grid. Not only does this look amazing, it also adds to the mic's resilience to water and sweat. The tiny grid holes, combined with the material chosen make this mic extremely robust; able to withstand the tough environments where they are used.

3-point ear grips

The ear grips on this headset consist of some amazing technology. Most headsets have either a 1- or 2-point gripping system – resting on top of the ear or (sometimes) gripping below the ear. This headset relies on a 3-point gripping system – adding a support area behind the ear pressing gently inward.

This not only makes the headset sit more securely around the head even in jostling situations, it also makes it extremely comfortable to wear even over long periods. Furthermore, the advanced, ergonomic shape of these ear grips conforms to the shape of the head.

90° cable management system

The headset has its cable guide directly at the back of the headset frame, so that you can easily organize the cables to run unobtrusively down the back of the performers. The cable guide slides from side to side, so it can be moved out of, for example, the camera view. The special construction also separates the cables from the boom movement, which ensures that cables are not pulled on when the boom is moved. This helps ensure a longer life to the mic cables.

The cable is often the weak spot on these types of mics, but DPA have opted to use the same size cable (Ø 1.6 mm (.06 in)) as on their 5 mm (0.20 in) mics. They are extremely rugged, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls.

The cable, capsule and boom design, ensure immunity to noisy wireless devices.

Headsets are typically connected to a wireless belt pack and DPA offer a comprehensive mix of adapters to suit the many wireless transmitters available. When used with an adapter, the connector is MicroLock, but there is also the option of hardwired terminations to suit the most popular systems from manufacturers such as Shure and Sennheiser. All of DPA's connectors are equipped with a rugged strain relief.
