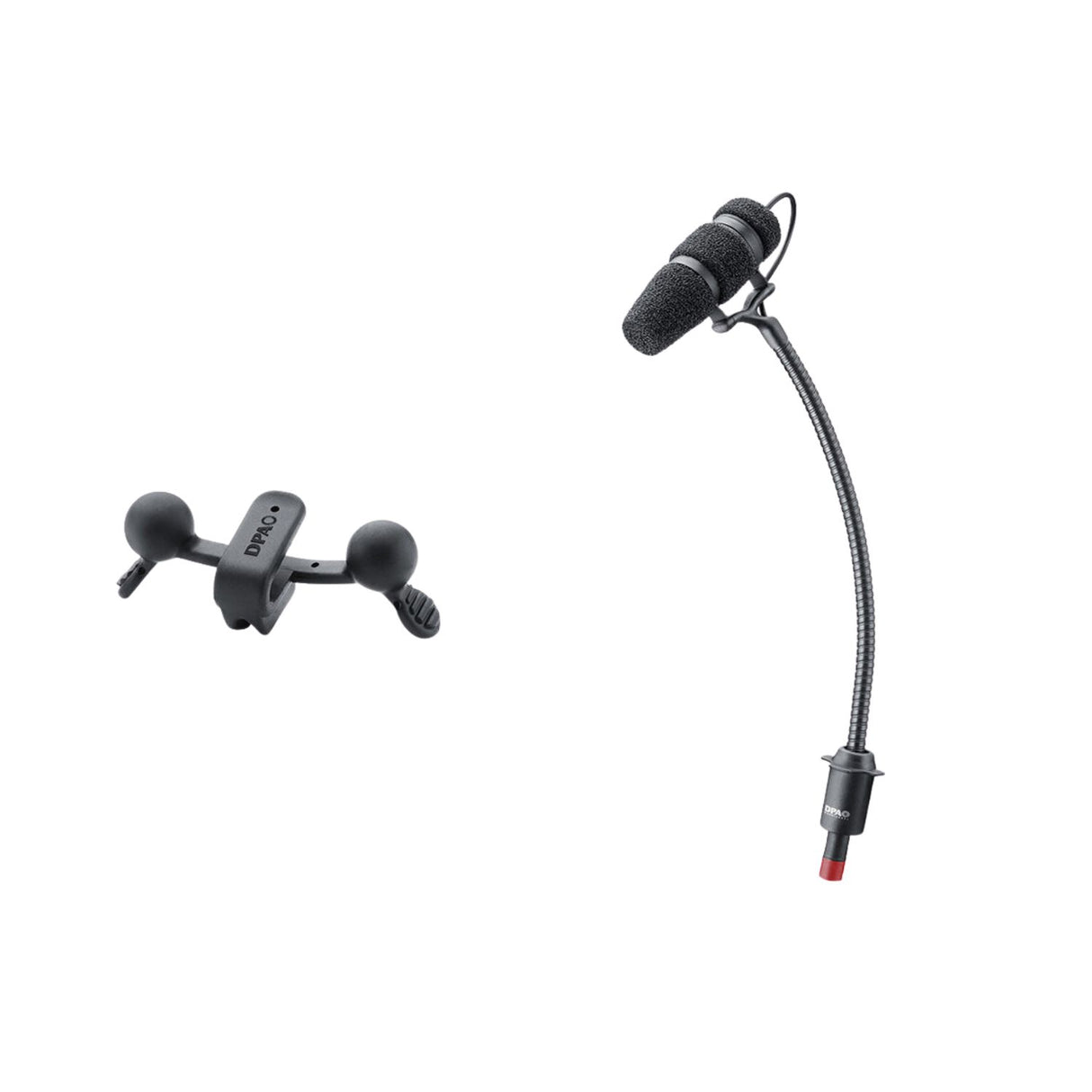

DPA 4099 CORE Mic, Loud SPL with Clip for Saxophone
Key Features
Description
Description

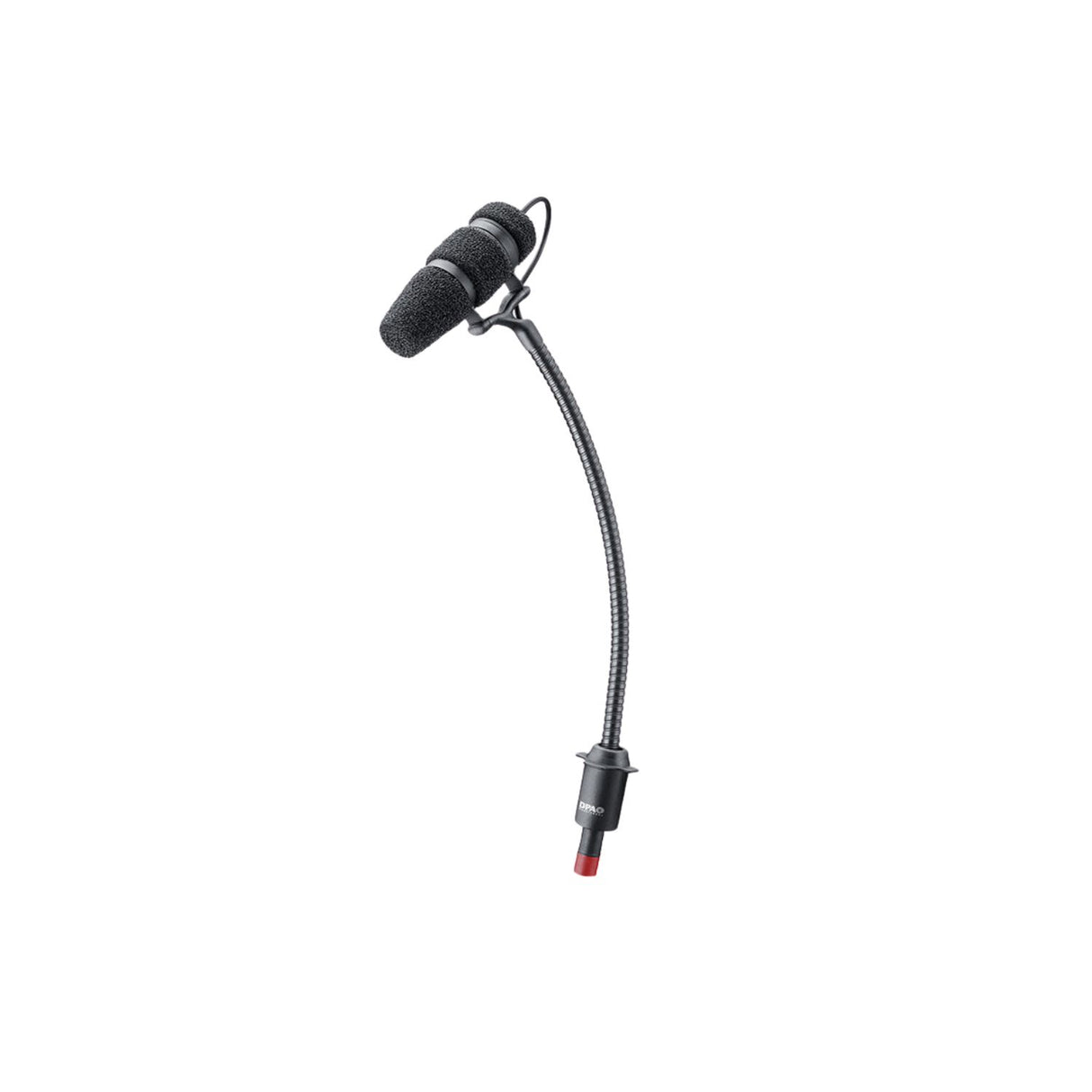

DPA 4099 CORE Mic, Loud SPL with Clip for Saxophone
The DPA 4099 CORE Mic, Loud SPL with Clip for Saxophone is the result of DPA’s extensive research and development into creating the ultimate microphone for live Sax performance and recordings.
Well-balanced Isolation
The CORE 4099 contains a highly directional capsule designed for use in ensembles, pit, stage and orchestral settings where other instruments and monitoring may be in close proximity. The pick up pattern of the capsule ensures maximum isolation of the musician’s saxophone, with incredibly low self-noise and high gain before feedback.
Natural Sounding
The DPA 4099 CORE Microphone includes the Loud SPL 4099 variation, which has a dynamic range of 108dB and can withstand up to 142dB before clipping. The CORE by DPA amplifier technology assists in the production of a very transparent sound so that even in the unlikely event of spill, there are no unnatural harsh frequencies to deal with.
Specifically Designed Saxophone Clip
Its mounting system is designed to securely attach the gooseneck microphone to the Sax by way of a rubber coated clamp which is very simple to fit and re-attach when required.
What's Included?
The DPA 4099 CORE Microphone for Saxophone comes with a DAD4099-BC XLR adapter which requires 48v phantom power and features a low cut built-in, but the Microphone can also be used with a wireless microphone system when coupled with the correct DPA adaptor.
- 1x 4099 CORE Loud SPL Mic.
- 1x DAD4099-BC
- 1x STC4099
Specifications
| Specification | Details |
|---|---|
| Directional characteristics | Supercardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarised condenser |
| Frequency range | 20 Hz to 20 kHz |
| Frequency range ±2 dB (20 cm / 7.9 in) | 80 Hz to 15 kHz with 2 dB soft boost at 10–12 kHz |
| Sensitivity, nominal, ±3 dB | 6 mV/Pa; -44.5 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| S/N ratio (1 kHz, 1 Pa / 94 dB SPL) | 71 dB |
| Total harmonic distortion (THD) | <1% up to 131 dB SPL peak |
| Dynamic range | 108 dB |
| Max. SPL (peak before clipping) | 142 dB |
| Output impedance | From MicroDot: 30–40 Ω; From DAD6001: 100 Ω |
| Cable drive capability | 300 m (984 ft) with DAD6001 |
| Output balance principle | Signal balanced with DAD6001 XLR adapter |
| Common mode rejection ratio (CMRR) | > 60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter |
| Power supply | Min. 5–50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter |
| Current consumption | 1.5 mA; 3.5 mA with DAD6001 XLR adapter |
| Connector | MicroDot |
| Colour | Black |
| Weight | 33 g (1.16 oz) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (6 ft) |
| Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
| Operating temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
