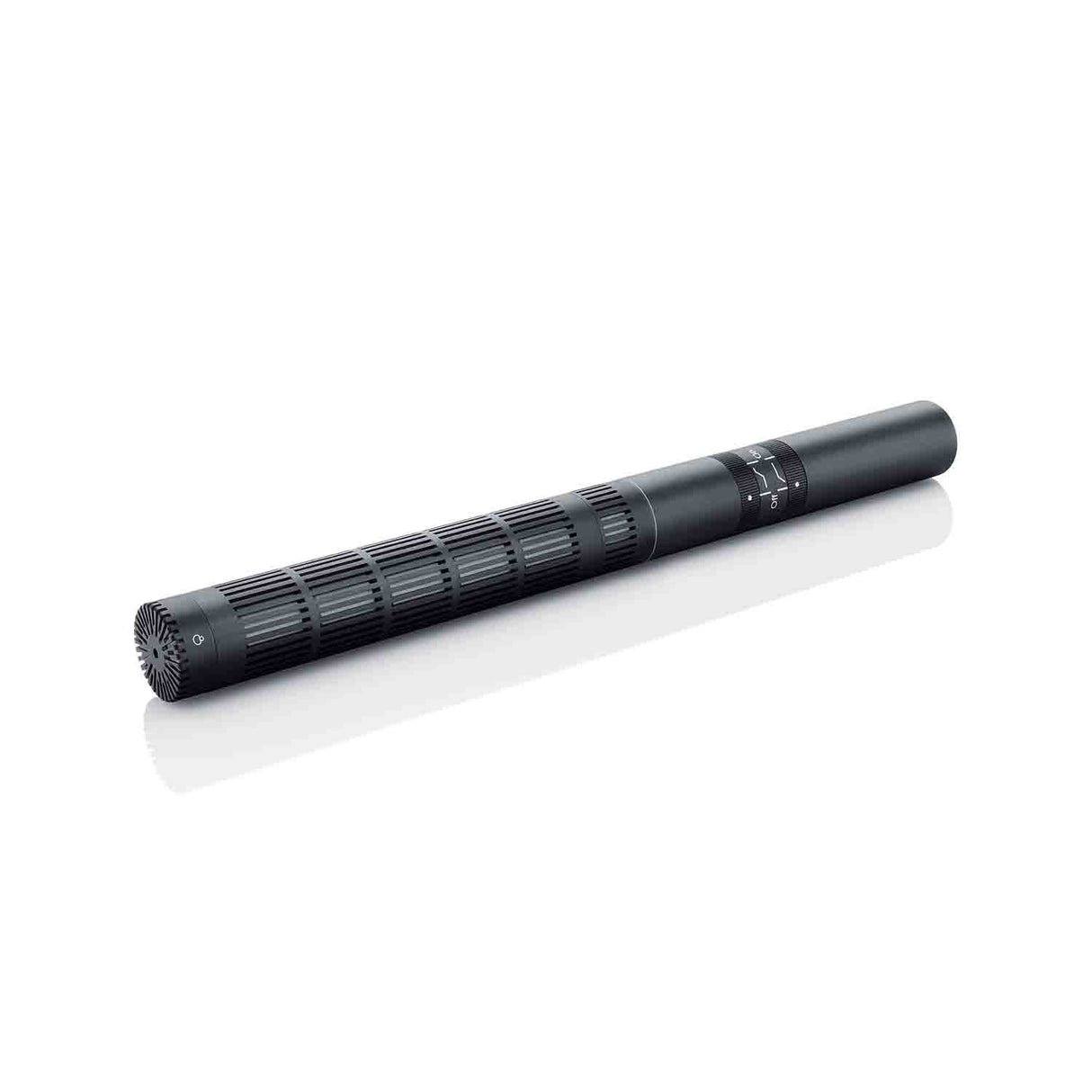

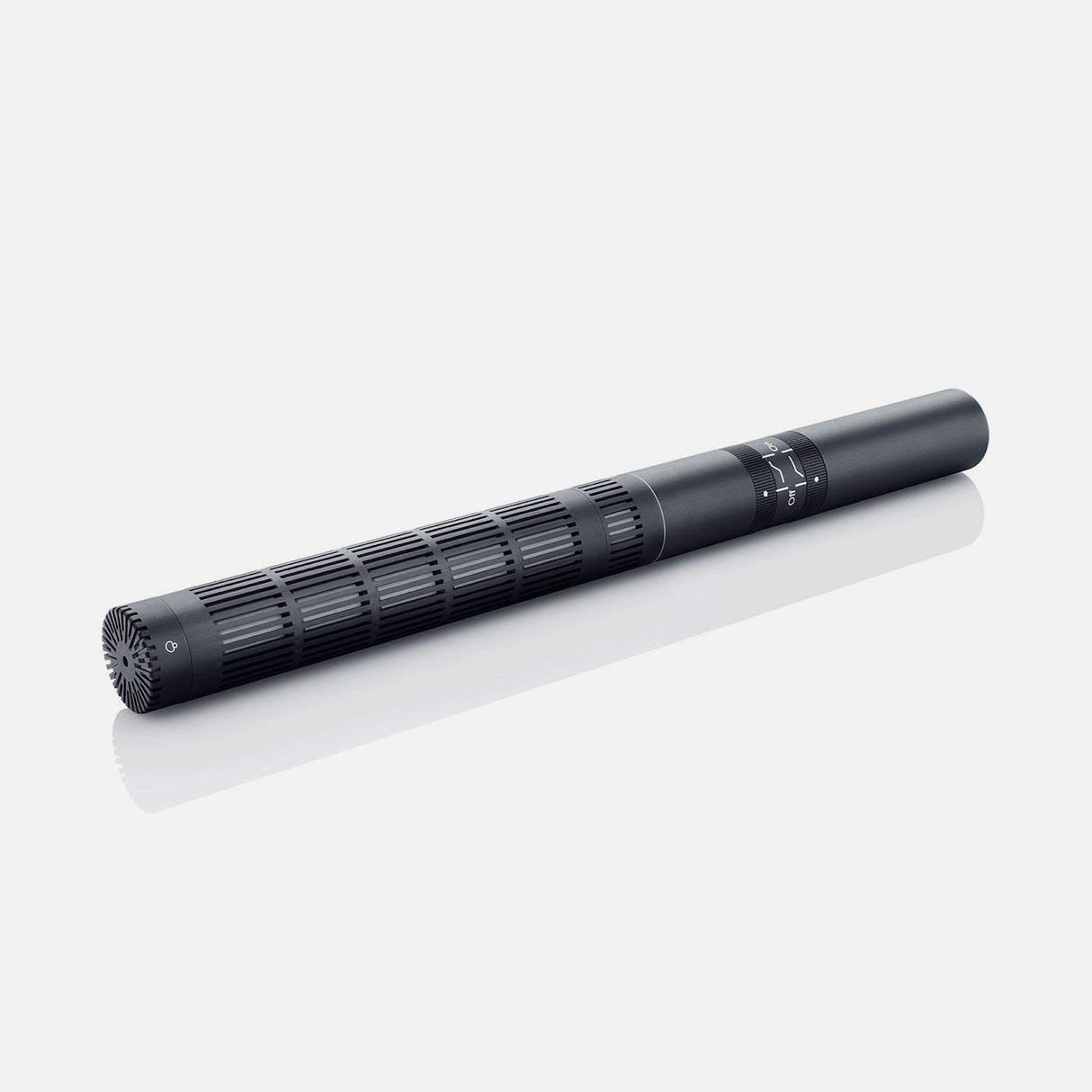

DPA 4017B Shotgun Mic
At just 210 mm (8.3 in) and 68 g (2.4 oz), the DPA 4017B is one of the shortest and lightest shotgun condenser microphones available. At the same time, it offers impressive accuracy, clarity and musicality. The mic is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. It also withstands use in very humid environments with ease.
The DPA 4017B Shotgun Microphone features two onboard filters. They are activated via an ingenious switching ring design. With a simple twist of two sturdy rings, engineers can implement a high-frequency boost that adds a 4 dB shelf at 8 kHz. This compensates for hi loss when used with windjammers. A first-order bass roll-off below 120 Hz minimises handling and wind noise. A permanent third-order high-pass filter at 50 Hz effectively removes unwanted low frequency disturbance from handling and wind noise.
Specifications
| Specification | Details |
|---|---|
| Directional pattern | Supercardioid, lobe-shaped |
| Principle of operation | Pressure gradient, with interference tube |
| Cartridge type | Pre-polarised condenser |
| Frequency response | 20 Hz – 20 kHz, permanent third-order high-pass filter at 50 Hz |
| Effective frequency range ±2 dB (at 60 cm / 23.6 in) | 70 Hz – 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 24 dB (max. 26 dB) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 124 dB |
| Max. SPL, THD 10% | 138 dB SPL peak |
| Switchable attenuator / filters | High boost: +4 dB at 8 kHzLow cut: First-order filter, below 120 Hz |
| Rated output impedance | 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Signal balanced |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 4.5 mA |
| Connector | XLR-3M. Pin 1: shield; Pin 2: signal + phase; Pin 3: signal - phase |
| Weight | 68 g (2.4 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 212 mm (8.3 in) |
| Maximum output voltage, RMS | 2.0 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Colours | Matte black |
